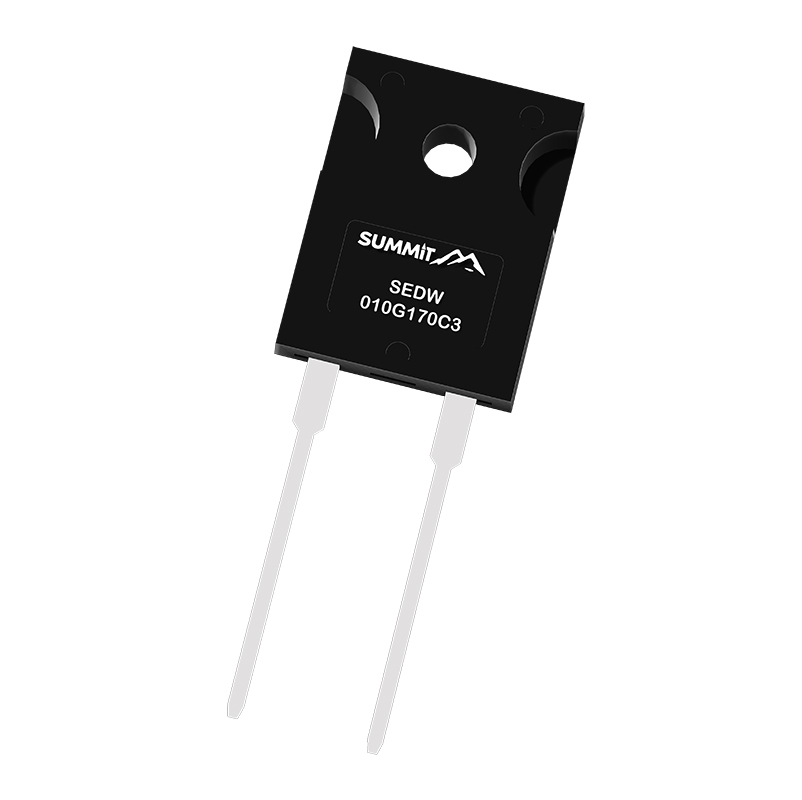

1700V Schottky Rectifier
Zero Reverse Recovery Current
High-Frequency Operation
Temperature-Independent Switching Behavior
Extremely Fast Switching
Benefits：
Replace Bipolar with Unipolar Rectifiers
Essentially No Switching Losses
Higher Efficiency
Reduction of Heat Sink Requirements
Parallel Devices Without Thermal Runaway
Maximum ratings (TC=25°C unless otherwise specified)
| Parameter | Symbol | Test Conditions | Value | Unit | Note |
| Repetitive Peak Reverse Voltage | VRRM | 1700 | V | ||
| DC Peak Reverse Voltage | VR | 1700 | V | ||
| Continuous Forward Current | IF | TC=25˚C | 41 | A | Fig.3 |
| TC=135˚C | 18.5 | ||||
| Tc=160˚C | 10 | ||||
| Repetitive Peak Forward Surge Current | IFRM | TC=25˚C, tP=10 ms, Half Sine Pulse | 54 | A | |
| TC=110˚C, tP=10 ms, Half Sine Pulse | 45 | ||||
| Non-Repetitive Forward Surge Current | IFSM | TC=25˚C, tP=10 ms, Half Sine Pulse | 65 | A | |
| TC=110˚C, tP=10 ms, Half Sine Pulse | 56 | ||||
| Non-Repetitive Forward Surge Current | IF,MAX | TC=25˚C, tP=10μs, Square Wave Pulse | 270 | A | |
| TC=110˚C, tP=10μs, Square Wave Pulse | 237 | ||||
| i²t value | ∫i²dt | TC=25˚C, tP=10 ms | 21 | A²s | |
| TC=110˚C, tP=10 ms | 16 | ||||
| Power Dissipation | Ptot | TC=25˚C | 231 | W | Fig.4 |
| TC=110˚C | 100 | ||||
| Operating Temperature | TJ | -55 to | ˚C | ||
| +175 | |||||
| Storage Temperature | Tstg | -55 to | ˚C | ||
| +175 | |||||
| TO-247 Mounting Torque | M3 Screw | 1 | Nm | ||
| 6-32 Screw | 8.8 | Ibf-in |
Electrical Characteristics（TJ=25℃）
| Parameter | Symbol | Test Conditions | Value | Unit | Note | ||
| Min. | Typ. | Max. | |||||

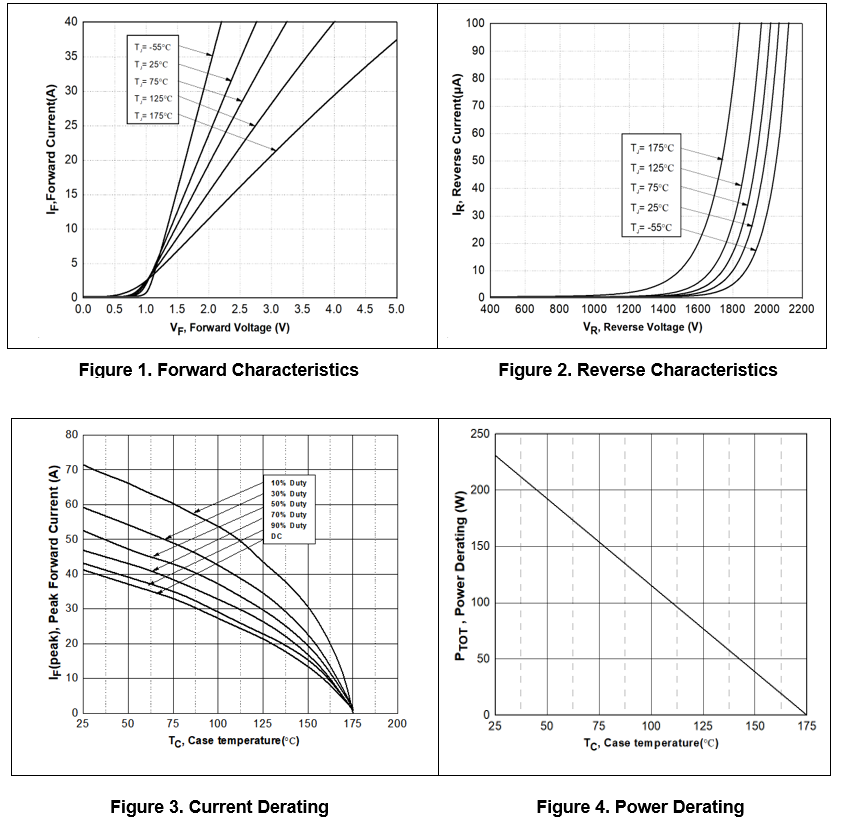

| Forward Voltage | VF | IF=10A, TJ=25°C | 1.4 | 1.7 | V | Fig.1 | |
| IF=10A, TJ=175°C | 1.9 | 2.8 | |||||
| Reverse Current | IR | VR=1700V, TJ=25°C | 5 | 18 | μA | Fig.2 | |
| VR=1700V, TJ=175°C | 39 | 90 | |||||

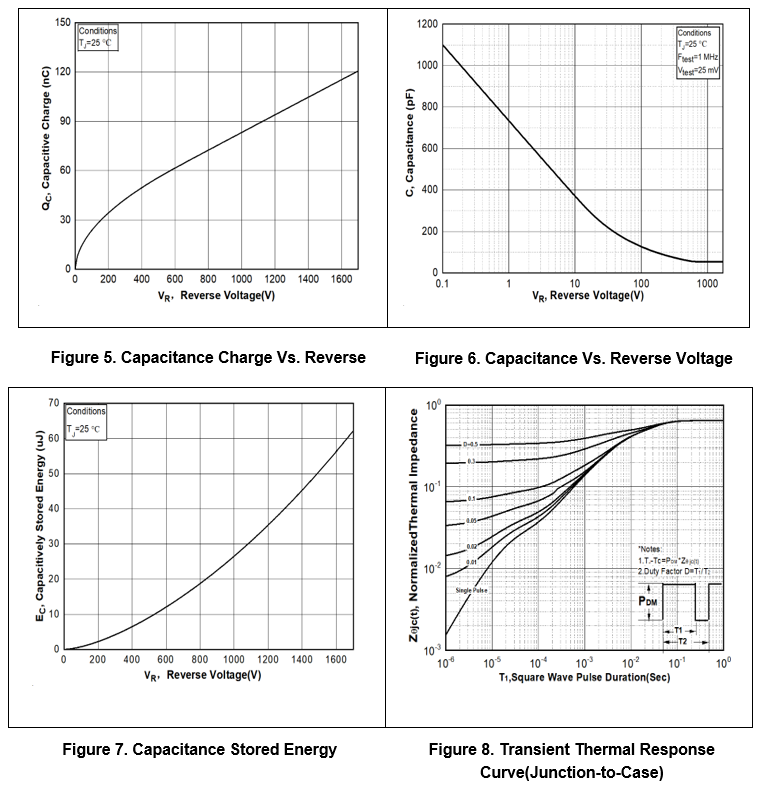

| Total Capacitive Charge | QC | VR=1700V, TJ=25°C | 121 | nC | Fig.5 | ||
| Total Capacitance | C | VR=0V,TJ=25°C,f=1MHz | 1096 | pF | Fig.6 | ||
| VR=800V,TJ=25°C,f=1MHz | 54 | ||||||
| VR=1700V,TJ=25°C,f=1MHz | 53 | ||||||
| Capacitance Stored Energy | EC | VR=1700 V | 62 | μJ | Fig.7 | ||
Thermal Characteristics
| Parameter | Symbol | Value | Unit | Note |
| Thermal Resistance(Junction to Case) | RɵJC | 0.65 | °C/W | Fig. 8 |
Typical Performance

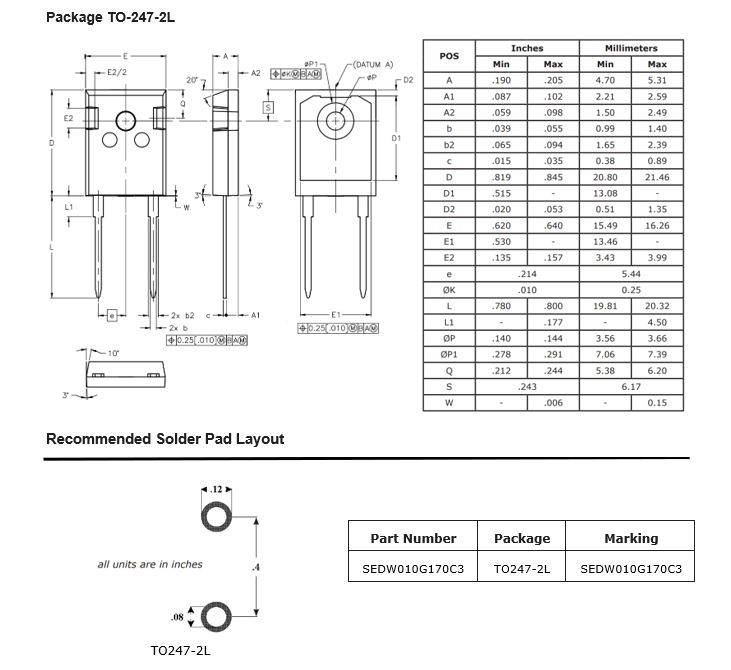

Package Dimensions
